Fiberglass chopped strand mat
Payment Type: L/C,T/T
Port: NINGBO SHANGHAI
Option: 100g/m2; 200g/m2; 300g/m2; 450g/m2; 600g/m2
- Overview
- Recommended Products
| Processing Service: | Moulding |
| Place Of Origin: | Zhejiang, China |
| Brand Name: | Grand |
| Application: | by hand lay-up FRP molding |
| Surface Treatment: | powder form or emulsion form |
| Technique: | spreading |
| Material: | Fibreglass |
| Color: | White |
| Feature: | High Strength |
| Width: | 1040mm, 1250mm, 1270mm Customized Width |
| Roll Weight: | 30kgs, 36kgs,33kgs, 40kgs etc |
| Packing: | 1 roll per one carton |
| Selling Units : | kilogram |
| Package Type : | Strong carton packing |
| Picture Example : |  |
Product Description
Supply fiberglass Chopped Strand Mat and continuous strand mat and stitch mat, stitch bonded mat, combo mat.

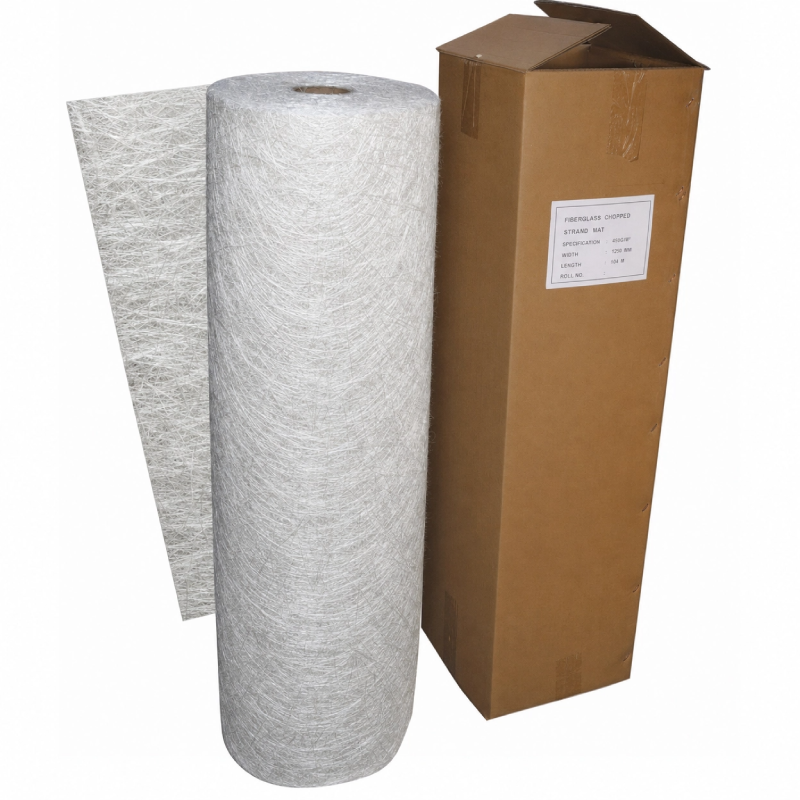

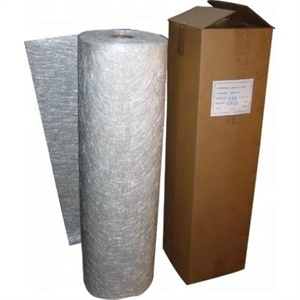

CHOPPED STRAND MAT
Chopped strand mat is a non-woven reinforced material. It is made through cutting the continuous roving. The end products are boats, laminates, bathing equipment, cooling tower, etc. Area weight ranging from 100g/㎡—900g/㎡. Width can be from 20cm—320cm. Binder is Powder or Emulsion.
| E,CSpecification | Weightg/m | Breaking strengthN/150mm | Speed ofImpregnation | PackageWeight (kg) |
| E-MC100 | 100 | 30 | 60 | 20 |
| E-MC200 | 200 | 30 | 180 | 30 |
| E-MC350 | 300 | 43 | 180 | 30 |
| E-MC450 | 450 | 60 | 180 | 30 |
| E-MC600 | 600 | 80 | 180 | 30 |
FIBERGLASS CONTINUOUS STRAND MAT
It is made of continuous fiberglass strand, non woven mat containing an insoluble binder for unsaturated polyester, epoxy, phenolic and polyurethane resin compatibility in unfilled or filled resin systems. It is suit for FRP process like pultruded profile, RTM process, filament winding process, etc.
STITCH MAT, STITCH BONDED MAT, COMBO MAT
Stitch-bonded combo mat is a kind of multi-layer fabric made from roving. Each layer is arranged unidirectionally. It is used in extrusion process, hand lay-up and resin transfer molding (RTM) process. The main end products are boat shells, pipes, etc.
Specifications of stitched combo mat (Multi-axial)
| Warp UD (0°) | 300-2400gsm, can be with chopping layer, tape available |
| Weft UD (90°) | 300-1200gsm, can be with chopping layer, tapes available |
| Bi-axial (0°/90°) | 300-2400gsm, can be with chopping layer, tapes available |
| Double Bi-axial(+/-45°) | 300-1200gsm, can be with chopping layer, tapes available |
| Tri-axial(0°/+/-45°or +45°/90°/-45°) | 450-1800gsm, can be with chopping layer, tapes available |
| Quadr-axial(0°/+45°/90°//45°) | 600-2000gsm, can be with chopping layer, tapes available |
Supply fiberglass chopped strand mat and continuous strand mat and stitch mat, stitch bonded mat, combo mat.
Supply fiberglass chopped strand mat, e-glass chopped strand mat, stitch bonded mat，fiber glass mat, fiberglass mat.
