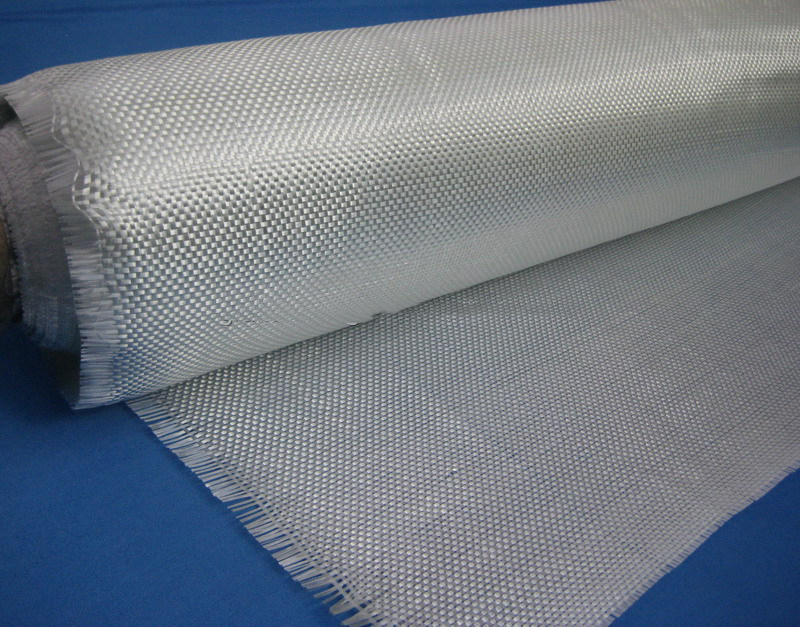

Woven Roving
Woven roving is a fabric made by interweaving roving and is mainly used for hand lay up process. The woven roving has the specification ranging from 200-1200g/m2, width can be from 10-320cm. The roll length is 50-150m or as per request from customers.
Its type has E-glass or c-glass. Woven Roving is compatible with many resins, densely aligned fibers resulting in a high strength. It is a high-performance reinforcement and widely used in hand and machine production, such as boats, vessels, plane and automotive parts.
Property:
Good mold ability and drapability making handing easy.
Warp and weft roving aligned in a parallel and flat manner resulting in uniform tension and very little twist.
Excellent mechanical properties
Good wet-out in resins.
| Specification | Tex |
Fiber diameter(um) |
Count of cloth(root/cm) |
Unit areamass(g/m) |
Breaking strength(N) |
Texture | ||||
|
Wrap yarn |
Weft yarn |
Wrap yarn |
Weft yarn |
Wrap yarn |
Weft yarn |
Wrapyarn | Weftyarn |
Plain Weave |
||
| EWR200 | 180 | 180 | 11 | 11 | 6.0 | 5.0 | 200±15 | 1300 | 1100 | |
| EWR300 | 300 | 300 | 13 | 13 | 5.0 | 4.0 | 300±15 | 1800 | 1700 | |
| EWR400 | 576 | 576 | 13 | 13 | 3.6 | 3.2 | 400±20 | 2500 | 2200 | |
| EWR500 | 900 | 900 | 17 | 17 | 2.9 | 2.7 | 500±25 | 3000 | 2750 | |
| EWR600 | 1200 | 1200 | 17 | 17 | 2.6 | 2.5 | 600±30 | 4000 | 3850 | |
| EWR800 | 2400 | 2400 | 24 | 24 | 1.8 | 1.8 | 800±40 | 4600 | 4400 | |
| CWR200 | 180 | 180 | 11 | 11 | 6.0 | 6.0 | 200±15 | 1150 | 1000 | |
| CWR400 | 480 | 500 | 13 | 13 | 4.0 | 3.8 | 385±30 | 2000 | 2200 | |
| CWR600 | 1300 | 960 | 13 | 13 | 2.6 | 2.6 | 600±45 | 3500 | 3000 | |
| CWR800 | 2200 | 1760 | 13 | 13 | 2.0 | 2.0 | 810±40 | 4000 | 3600 | |
In addition to the normal specifications mentioned above, we also offer customization services. If you have specific requirements regarding the tex count, unit area mass, width, or any other technical parameters, please feel free to contact us. Our professional team will work closely with you to develop the most suitable solution to meet your unique needs.
