Fiberglass plain weave fiberglass cloth
Payment Type: L/C,T/T
Port: NINGBO SHANGHAI
Color: White
- Overview
- Recommended Products
| Application: | Fiberglass Mesh Cloth |
| Surface Treatment: | Silicon Coated |
| Yarn Type: | E-Glass |
| Alkali Content: | Medium |
| Processing Service: | Moulding |
| Place Of Origin: | Zhejiang, China |
| Brand Name: | Grand |
| Weight: | 200g/㎡-1200g/㎡ |
| Width: | 1000mm |
| Weave Type: | Plain Woven |
| Standing Temperature: | 280 |
| Color: | White |
| Shape: | Roll |
| Roll Length: | as per buyer |
| Samples: | Availiable |
| Selling Units : | kilogram |

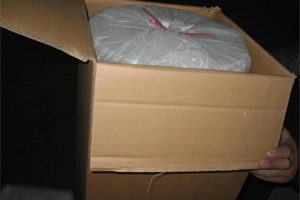

| Package Type : | carton pallet |
| Picture Example : |  |
Product Description:
Woven Roving is a fabric made by interweaving roving and is mainly used for hand lay up process. The woven roving has the specification ranging from 200-1200g/m2, width can be from 10-320cm. The roll length is 50-150m or as per request from customers.
Its type has E-glass or c-glass. Woven Roving is compatible with many resins, densely aligned fibers resulting in a high strength. It is a high-performance reinforcement and widely used in hand and machine production, such as boats, vessels, plane and automotive parts.
Property:
Good mold ability and drapability making handing easy.
Warp and weft roving aligned in a parallel and flat manner resulting in uniform tension and very little twist.
Excellent mechanical properties
Good wet-out in resins.
Technical Parameter
| Specification | Tex | Fiber diameter(um) | Count of cloth(root/cm) | Unit area mass(g/m) | Breaking strength(N) | Texture | ||||
| Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | |||
| EWR200 | 180 | 180 | 11 | 11 | 6.0 | 5.0 | 200±15 | 1300 | 1100 | Plain Weave |
| EWR300 | 300 | 300 | 13 | 13 | 5.0 | 4.0 | 300±15 | 1800 | 1700 | |
| EWR400 | 576 | 576 | 13 | 13 | 3.6 | 3.2 | 400±20 | 2500 | 2200 | |
| EWR500 | 900 | 900 | 17 | 17 | 2.9 | 2.7 | 500±25 | 3000 | 2750 | |
| EWR600 | 1200 | 1200 | 17 | 17 | 2.6 | 2.5 | 600±30 | 4000 | 3850 | |
| EWR800 | 2400 | 2400 | 24 | 24 | 1.8 | 1.8 | 800±40 | 4600 | 4400 | |
| CWR200 | 180 | 180 | 11 | 11 | 6.0 | 6.0 | 200±15 | 1150 | 1000 | |
| CWR400 | 480 | 500 | 13 | 13 | 4.0 | 3.8 | 385±30 | 2000 | 2200 | |
| CWR600 | 1300 | 960 | 13 | 13 | 2.6 | 2.6 | 600±45 | 3500 | 3000 | |
| CWR800 | 2200 | 1760 | 13 | 13 | 2.0 | 2.0 | 810±40 | 4000 | 3600 | |
Supply fiberglass woven roving，glass fiber woven roving，woven roving,woven roving fabric, Fiberglass cloth, fiberglass fabric.
